MIG 352 Compact Inverter Package Jasic ZXJM-352C 5 YEARS GUARANTEE
€2,550.00

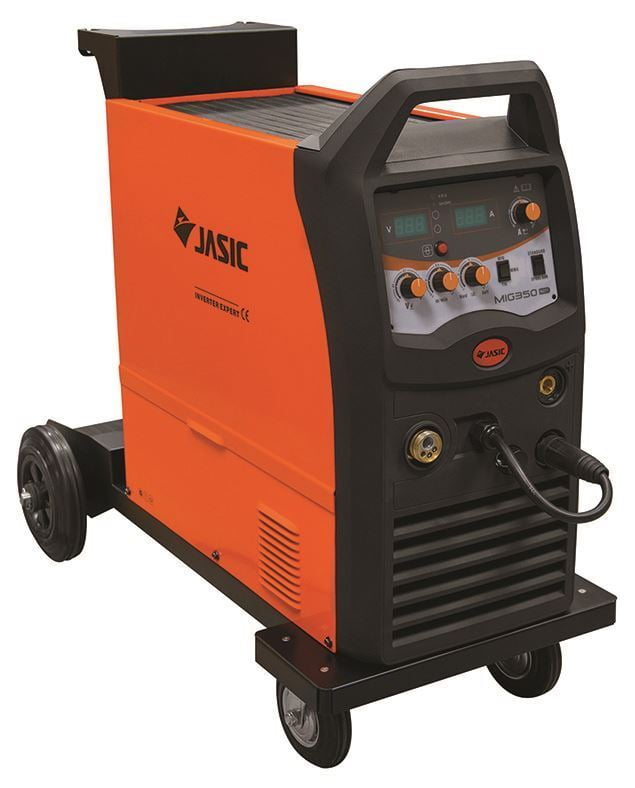

Jasic MIG 350 Compact Inverter Package includes power source, MIG torch, gas regulator, work return lead & clamp
Key Features
■ Multi function inverter: MIG/MAG/MMA and gasless, flux cored, lift arc TIG
■ Digital display
■ 4 roll feed drive
■ High duty cycle
■ Advanced control circuitry
■ Suitable for 0.8, 1.0 and 1.2mm wire
■ Stable welding arc with minimal spatter
■ Burn back control
■ Spool gun interface
■ Wire inching feature
■ VRD on MMA setting
Technical Data
Input Voltage AC 400V - 50/60 Hz Ieff(A) 13.7
Input Power (kVA) 15
Voltage Adjustment Range (V) 15 - 38
Current Range (A) 50 - 350
Duty Cycle @ 40°C 350A @ 40%
No-Load Voltage (V) (19V - VRD)
Wire Spool Size ø 300mm
Efficiency (%) 85
Power Factor 0.93
Protection/Insulation Class IP21S/F
Dimensions (LxWxH mm) 900 x 450 x 755
Weight (Kg) 52
Prices vat included
