METAL BAND SAW 700W 1450 rpm KD1734
Metal band saw 700W 1450 rpm KD1734

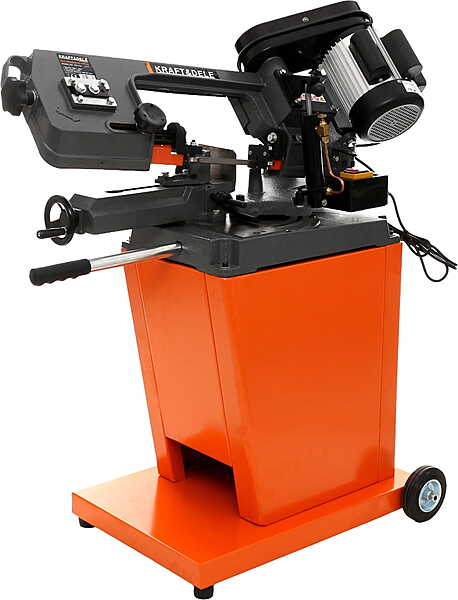

The KD1734 is a powerful metal band saw from KRAFT&DELE, designed for precise machining of various types of steel and metal profiles. The device was manufactured using modern technologies, which translates into comfortable operation, stability, and high cutting efficiency.
The KD1734 model is equipped with a 700W motor powered by 230V, ensuring efficient and smooth operation. The saw features an automatic limit switch and a stepless, hydraulic frame lowering system, which allows for controlled and even cutting. The device allows for double beveling in a range of -45° to +60°, making it ideal for more demanding workshop and metalworking tasks.
PRODUCT FEATURES:
✅ 700W S1 power – efficient work when cutting metal
✅ Power supply 230V / 50-60Hz
✅ Automatic limit switch for increased comfort of use
✅ Stepless hydraulic lowering of the saw frame
✅ Possibility of making double bevels from -45° to +60°
✅ Three blade speeds: 23 m/min; 34 m/min; 55 m/min
✅ Stable construction ensuring precise and repeatable cutting
✅ Solid built-in vice for secure grip and material positioning
TECHNICAL DATA:
| ⚙️ Brand | KRAFT&DELE |
| ⚙️ Model | KD1734 |
| ⚙️ Device type | Band-saw |
| ⚙️ Power supply | 230V / 50-60Hz |
| ⚙️ Power S1 | 700W |
| ⚙️ Power S6 | 975W |
| ⚙️ Cutting band size | 1640 x 13mm |
| ⚙️ Tape speed | 1450 rpm |
| ⚙️ Blade Speed | 23 / 34 / 55 m/min |
| ⚙️ Max. diameter of a round profile at a 90° cutting angle | 125mm |
| ⚙️ Max. diameter of a round profile at a 45° cutting angle | 95mm |
| ⚙️ Max. diameter of a round profile at a 60° cutting angle | 50mm |
| ⚙️ Max. dimension of a hexagonal profile at a 90° cutting angle | 100x150mm |
| ⚙️ Max. dimension of a hexagonal profile at a 45° cutting angle | 95x76mm |
| ⚙️ Max. dimension of a hexagonal profile at a 60° cutting angle | 50x56mm |
| ⚙️ Dimensions | 1000x550x1100mm |
| ⚙️ Device weight | 81kg |
| ⚙️ Sound power level LWA | 76db (A) |
